Disponemos de un amplio surtido de equipamiento usado a precios reducidos.

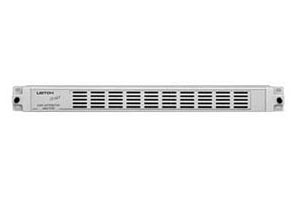

Descripcion: El FR-683 Mounting Frames acepta cualquier tipo de amplificador de video de la serie 680 en cualquiera de sus 4 slot. Incorpora conectores BNC, solucionando y simplificando los problemas de distribucion, procesamiento, equalizacion retardos, etc. This equipment is renowned for its high quality and reliability. Design considerations ensure compatibility with both earlier and future developments.

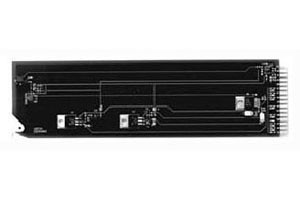

Descripcion: The VDA-683 is a general purpose distribution amplifier with excellent linearity and gain stability for solving common mode errors. It can handle anything from nominally 0.7Vp-p non-composite video to 2Vp-p subcarrier. Low power consumption and high temperature stability make this a very reliable, inexpensive distribution amplifier for analog composite/component and analog HDTV installations. The VDA-683 provides a differential input when equalization and clamping are not required. Although normally used as a unity gain amplifier, a variable gain control on the module front edge with a range from -3dB to +3dB allows compensation for non-standard input levels or line losses.
Descripcion: The FR-883 Mounting Frame accepts any type of the 880 Series Audio Distribution Amplifiers in any slot. The modular concept facilitates system design. Isolation between modules in the mounting frame is better than 100 dB over the entire audio frequency spectrum. Design considerations ensure compatibility with both earlier and future developments. The 1RU FR-883 mounting frame comes complete with one 884PS power supply, a set of forty Acon plug-in connectors, and accepts any mix of up to four 880 Series amplifiers.

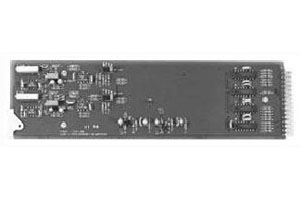

Descripcion: The ASD-880-600 stereo audio distribution amplifier is designed to meet the most demanding requirements of broadcast facilities, television post-production, and recording studios. This excellent amplifier provides two high performance channels with four balanced outputs per channel. Excellent output isolation and interchannel crosstalk is assured by the use of individual drivers for each output.
Features: 1 in 4 out stereo
Compatible with all Leitch audio DA frames
600 ohms output impedance
Very low noise (100 dB S/N)
Excellent interchannel crosstalk (>95 dB)

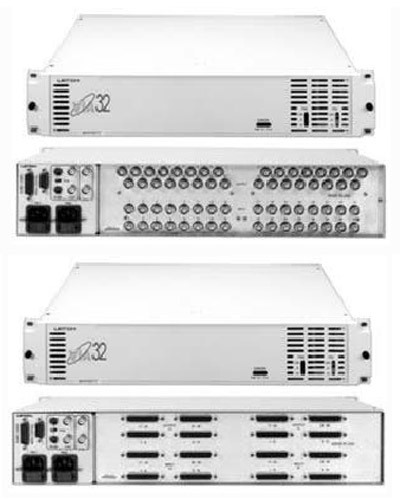

Modelo: VIA 32
(32×16 Analog Video Routing Switcher – 32×16 Dual Channel Audio Routing Switcher)
Descripcion: The analog video VIA32 offers high bandwidth of 100MHz which makes it ideal for NTSC, PAL, SECAM, High Resolution RGB graphics and DS3 switching. For component analog applications, three frames can be linked together using the XY Control System. Frames can be configured as 32×16 with plug-in expansion to 32×32. Expansion to 32×48 and 32×64 video is accomplished by using the EX16-1x2V external expansion frames.
Video Input Coupling: DC
Video Output Return Loss: 45dB at 5MHz; 35dB at 20MHz; 18dB at 100MHz
Video Output Gain Scatter: ±0.1dB
Video Output Phase Scatter: Input to Input ±1.0° at 5MHz
Video Output DC Offset: ±50mv
